USD 350.05

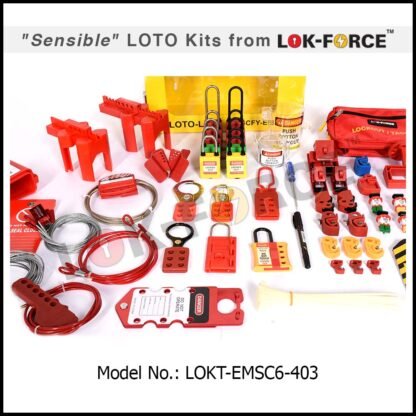

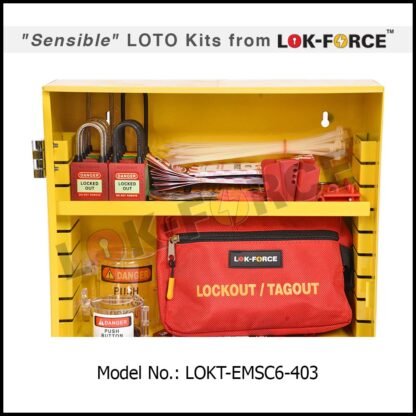

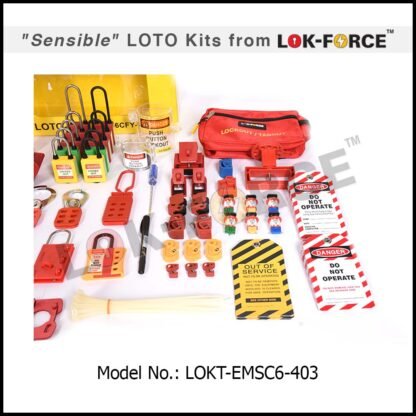

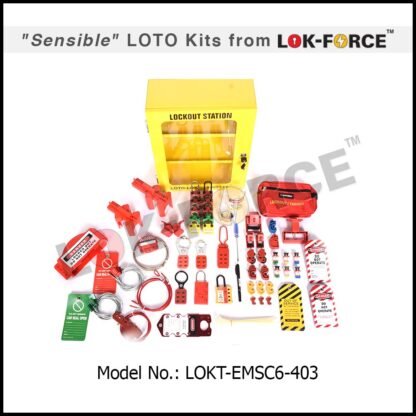

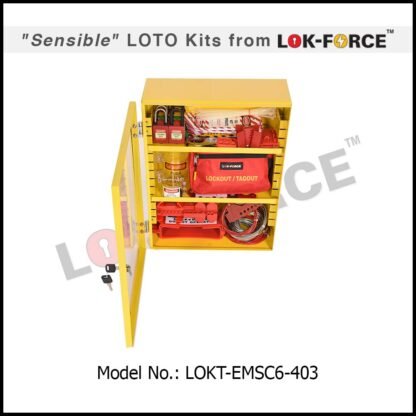

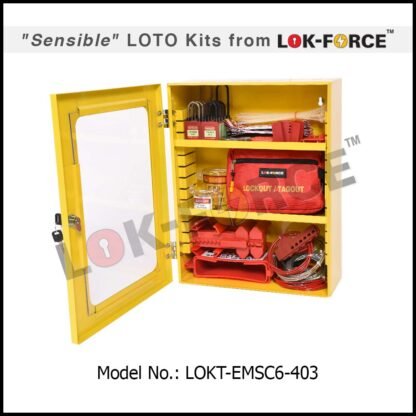

SENSIBLE LOTO KIT ELECTRO-MECHANICAL STEEL CABINET (MEDIUM)
The best of both worlds – a mix of the most commonly used electrical & mechanical energy isolation devices stored in a clear fascia powder coated rust resistant wall mounted steel cabinet.
Lock MCB’s, MCCB’s, push buttons, ball, gate and butterfly valves etc.
Essential for industries, offshore and marine environments where access to supply sources are difficult or hard to reach.
SENSIBLE LOTO KIT ELECTRO-MECHANICAL STEEL CABINET (MEDIUM)
The best of both worlds – a mix of the most commonly used electrical & mechanical energy isolation devices stored in a clear fascia powder coated rust resistant wall mounted steel cabinet.
Lock MCB’s, MCCB’s, push buttons, ball, gate and butterfly valves etc.
Essential for industries, offshore and marine environments where access to supply sources are difficult or hard to reach.
| Serial No. | Description | Model No. | Quantity |
| 1. | Lockout / Tagout Station with Clear Fascia. Color: Yellow. Dimensions: 360 × 450 × 155mm. | LS-6CFY-EB | 1 Pc. |
| 2. | LOTO Bag - Belt Pouch. Color: Red. Brand: LOK-FORCE™. Size: 20.5 x 10 x 14 cms. | BG-RD21BP | 1 Pc. |
| 3. | Hasp – Steel, PE Injection Molded Handles, Color: Red. Size: 25mm. Small, 6 locks capacity. Brand: LOTO-LOK®. | HSP-PMH-25R | 1 Pc. |
| 4. | Hasp – Steel, PE Injection Molded Handles, Color: Red. Size: 38mm. Large, 6 locks capacity. Brand: LOTO-LOK®. | HSP-PMH-38R | 1 Pc. |
| 5. | Hasp – Aluminium Round Rod Scissor hasp. With Non-conductive Black coating and Injection Molded Nylon Handle. Size: 38 mm. (LARGE). Color: Red. Brand: LOTO-LOK®. | HSP-AL-38 | 1 Pc. |
| 6. | Hasp – Nylon, Non Conductive, Color: Red, 6 locks capacity. Size: 5.0 mm Shackle diameter. Brand: LOTO-LOK®. | HSP-RNH-65 | 1 Pc. |
| 7. | Hasp – Nylon, Di-Electric, Yellow / Red color with 4 locks capacity. Size: 3.0 mm Shackle diameter. Brand: LOTO-LOK®. | HSP-DEY3 | 1 Pc. |
| 8. | Hasp – Aluminum Alloy. Accommodates 6 Padlocks. Color: Red. Size: W 77 mm x L 190 mm. No. of Padlock Hole: 6 Holes (8.5 mm hole diameter). | HSP-ALR-6 | 1 Pc. |
| 9. | Hasp – Nylon Body with 3.5mm Steel Shackle for small apertures. 4 Locks capacity. Color RED. Brand: LOTO-LOK®. | HSP-TS3-4L | 1 Pc. |
| 10. | Circuit Breaker Locking Device Pin Combo (SET OF 3) for Miniature Circuit Breaker. 1 off PIN – IN, 1 off PIN – OUT & 1 off PIN – OUT – WIDE. Brand: LOTO-LOK®. | CB–COMBO–CTBL | 2 Sets |
| 11. | Circuit Breaker Locking Device for Single & Multi Pole MCB's & MCCB's. Opened and Closed with Screwdriver. Color: Yellow. Brand: LOTO-LOK®. | CB-MG-CTBL | 3 Pcs. |
| 12. | Circuit Breaker Locking Device for Single and Multi Pole MCB's & MCCB's. Opened and Closed with Screwdriver. Color: Blue. Brand: LOTO-LOK®. | CB–AB–CTBL | 1 Pc. |
| 13. | Circuit Breaker Locking Device, Universal type for Single & Multipole MCB's & MCCB's upto 200A, Hand Tightening, No-Tool. Color: Red. Brand: LOQ-IT. | CB-UNI-HT | 2 Pcs. |
| 14. | Circuit Breaker / Fuse Lockout, Screwdriver Required, Color: Red. | CB-FLRD | 1 Pc. |
| 15. | Circuit Breaker Locking Device - Universal Type for Single & Multipole MCB's & MCCB's upto 200A with cover and 2 Way Padlocking slots. Color: Red. | CB-COV94 | 2 Pcs. |
| 16. | Circuit Breaker Locking Device for Single Pole Miniature Circuit Breaker. Color - Red. Opened and closed with screwdriver. Brand: LOTO-LOK®. | CB-UB-CTBL | 3 Pcs. |
| 17. | Circuit Breaker Locking Device, Lockouts 277 Volts MCCB's with toggle Width 16mm x 11.5mm Thickness. Thumbwheel Operation. Size: Small, Color: Red. Brand: LOQ-IT. | CB-KT-S | 2 Pcs. |
| 18. | Circuit Breaker Locking Device, Lockouts 480/600 Volts MCCB's with toggle Width 41mm x 13.5mm Thickness. Thumbwheel Operation. Size: Medium, Color: Red. Brand: LOQ-IT. | CB-KT-M | 1 Pc. |
| 19. | Circuit Breaker Locking Device - for MCCB with large toggles upto 600Amps. Round handle. NO-TOOL required. Accommodates multiple padlocks. | CB-LCB-RH | 1 Pc. |
| 20. | Cable Lockout - Economy Squeezer Multipurpose, Gavanized Steel Cable PVC coated with Brass End Cap. Cable Length: 1.5 Mtr. Cable Diameter: 4.0mm. Brand: LOTO-LOK®. | CL-SQCL-1.5MR | 1 Pc. |
| 21. | Cable Lockout - Adjustable with Stainless Steel PVC coated cable with brass end cap. Color: Red. Cable Sizes: Dia. 5/32" (4mm) x 6' (1.8 Mtrs.). | CL‐6F‐4MC | 1 Pc. |
| 22. | Cable Sling - PVC Coated GI Cable. Both ends crimped with Aluminium soft eyes. Color: Red. Sizes: 3.8mm O.D. x 2.5mm I.D. Cable Length: 1 Mtr. | CL-2L-R100D38 | 2 Pcs. |
| 23. | Adjustable Gate Valve Lockout. Material: Made from polypropylene PP. Color: RED. Locks gate valve hand wheel sizes from 25 mm. to 125 mm. Brand: LOTO-LOK®. | VL-GVLA-25125 | 1 Pc. |
| 24. | Valve Lockout - BALL (Lever Type). Polypropylene Construction. Color: Red. Locks Valve Sizes: 10 mm – 32 mm. | VL‐BV‐1032TL | 1 Pc. |
| 25. | Valve Lockout - BALL (Lever type). Polypropylene Construction. Color: Red. Locks Valve Sizes: 13 mm - 64 mm. | VL‐BV‐1364TL | 1 Pc. |
| 26. | Adjustable Butterfly Valve Lockout. Suitable for locking out 0.8~4.5cm butterfly valves. Valve Handle Slot: min. 27mm, max. 47mm, height 13mm. Diameter of the Hole: 4.5mm. (To be used with CL-6F-4MC Cable lockout) | VL-BF-1P | 1 Pc. |
| 27. | Panel Lockout - Push Button Emergency. Polycarbonate material. Color: Transparent. Inner Size:70mm x H85mm. Brand: LOTO-LOK®. | PL-EPB-90 | 1 Pc. |
| 28. | Panel Lockout - Push Button. Cover size: 62mm Dia x 54mm H. Fits 27 ~ 32mm. Hole diameter push buttons. | PL-AD-2732 | 1 Pc. |
| 29. | Car Seals - Aluminium / Zinc Body, Galvanized Aircraft wire cable 1 mtr. Long. Color: Red. Size: 2.5 mm wire dia x 1.0 Mtr. Length. Brand: LOTO-LOK®. | CS-RED-1M | 5 Pcs. |
| 30. | Car Seals - Aluminium / Zinc Body, Galvanized Aircraft wire cable 1 mtr. Long. Color: Green. Size: 2.5 mm wire dia x 1.0 Mtr. Length. Brand: LOTO-LOK®. | CS-GRN-1M | 5 Pcs. |
| 31. | 3-PTP (Three Point Traceability Padlock). Color: Red. SS304 Grade Regular Shackle 40mm. Body: Nylon PA66 Construction. Key Different (2 Unique Keys per Lock). Brand: LOTO-LOK®. | 3PTPRKDR40 | 2 Pcs. |
| 32. | 3-PTP (Three Point Traceability Padlock). Color: Red. Body: Nylon PA66 material. Shackle: Nylon PA66 extruded over SS304 DUAL PURPOSE (Electrical & Mechanical use), Non-Conductive (DUO 2in1), Rust, Shock & Weatherproof. Key Different (2 Unique Keys per Lock). Regular Shackle 40mm. Brand: LOTO-LOK®. | 3PTPRKDN40 | 2 Pcs. |
| 33. | 3-PTP (Three Point Traceability Padlock). Color: Red. SS304 Grade Long Shackle 80mm. Body: Nylon PA66 Construction. Key Different (2 Unique Keys per Lock). Brand: LOTO-LOK®. | 3PTPRKDL80 | 1 Pc. |
| 34. | 3-PTP (Three Point Traceability Padlock). Color: Red. Body: Nylon PA66 material. Shackle: Nylon PA66 extruded over SS304 DUAL PURPOSE (Electrical & Mechanical use), Non-Conductive (DUO 2in1), Rust, Shock & Weatherproof. Key Different (2 Unique Keys per Lock). Long Shackle 80mm. Brand: LOTO-LOK®. | 3PTPRKDN80 | 1 Pc. |
| 35. | 3-PTP (Three Point Traceability Padlock). Color: Yellow. SS304 Grade Regular Shackle 40mm. Body: Nylon PA66 Construction. Key Different (2 Unique Keys per Lock). Brand: LOTO-LOK®. | 3PTPYKDR40 | 1 Pc. |
| 36. | 3-PTP (Three Point Traceability Padlock). Color: Yellow. Body: Nylon PA66 material. Shackle: Nylon PA66 extruded over SS304 DUAL PURPOSE (Electrical & Mechanical use), Non-Conductive (DUO 2in1), Rust, Shock & Weatherproof. Key Different (2 Unique Keys per Lock). Regular Shackle 40mm. Brand: LOTO-LOK®. | 3PTPYKDN40 | 1 Pc. |
| 37. | 3-PTP (Three Point Traceability Padlock). Color: Green. SS304 Grade Regular Shackle 40mm. Body: Nylon PA66 Construction. Key Different (2 Unique Keys per Lock). Brand: LOTO-LOK®. | 3PTPGKDR40 | 1 Pc. |
| 38. | 3-PTP (Three Point Traceability Padlock). Color: Green. Body: Nylon PA66 material. Shackle: Nylon PA66 extruded over SS304 DUAL PURPOSE (Electrical & Mechanical use), Non-Conductive (DUO 2in1), Rust, Shock & Weatherproof. Key Different (2 Unique Keys per Lock). Regular Shackle 40mm. Brand: LOTO-LOK®. | 3PTPGKDN40 | 1 Pc. |
| 39. | Tag, "CAR SEAL CLOSED". Color: Red. 275 Micron Polypropylene Sheet with both sides Digital Printing. With Metal Eyelet. Size: L 160 mm x W 80 mm. | TAGD-CSR | 5 Pcs. |
| 40. | Tag, "CAR SEAL OPEN". Color: Green. 275 Micron Polypropylene Sheet with both sides Digital Printing. With Metal Eyelet. Size: L 160 mm x W 80 mm. | TAGD-CSG | 5 Pcs. |
| 41. | DANGER TAG, " DO NOT OPERATE ". Material: PVC. Size: L 143 mm x W 80 mm x 0.5 mm thk. | S1 – TAGD – 01 | 10 Pcs. |
| 42. | DANGER TAG, " DO NOT OPERATE ". Material: PVC. Size: L 160 mm x W 80 mm x 0.5 mm thk. | S1 – TAGD – 222 | 10 Pcs. |
| 43. | TAG, Yellow color. " OUT OF SERVICE, NOT TO BE OPERATED ". Material: PVC. Size: L 160 mm x W 80 mm x 0.5 mm thk. | S1 – TAGC – 301 | 5 Pcs. |
| 44. | Screwdriver. | TOOL-SCD | 1 Pc. |
| 45. | Marker Pen. Color: Black. | LSP-MARKER | 1 Pc. |
| 46. | Cable Ties, 8" Length for Tie Tags. | LSP-CABLETIE | 25 Pcs. |
